Input Voltage: 100-277VAC
Power Range:30-300W
High Efficiency: up to 86% ; PF>0.95
IP54 Design; Flicker-free
Cooling by free air convection
Suitable for dry, damp, or wet location use
Compatible with 0-10V,1-10V, PWM ,Potentiometer dimming
Protection:short circuit/over loading/over current/ Over temperature
7 years warranty
| Model No. | Power | Output Voltage | Output Current | Weight(kg) | Size(L*W*Hmm) | Packing |
OTM-PDJ30-12-F
OTM-PDJ30-24-F | 30W | 12V 24V | 2.5A
1.25A | 0.95
| 165*92*41 | 10PCS/CTN |
OTM-PDJ60-12-F
OTM-PDJ60-24-F | 36W | 12V 24V | 5A
2.5A | 1 | 188*92*41 | 10PCS/CTN |
OTM-PDJ80-12-F
OTM-PDJ80-24-F | 60w | 12V 24V | 6.67A
3.33A | 1.3 | 220*93*41 | 10PCS/CTN |
OTM-PDJ96-24-F | 96w | 12V 24V | 4A | 1.3 | 220*93*41 | 10PCS/CTN |
OTM-PDJ100-12-F
OTM-PDJ100-24-F | 100W | 12V 24V | 8.3A
4.17A | 1.3 | 220*93*41 | 10PCS/CTN |

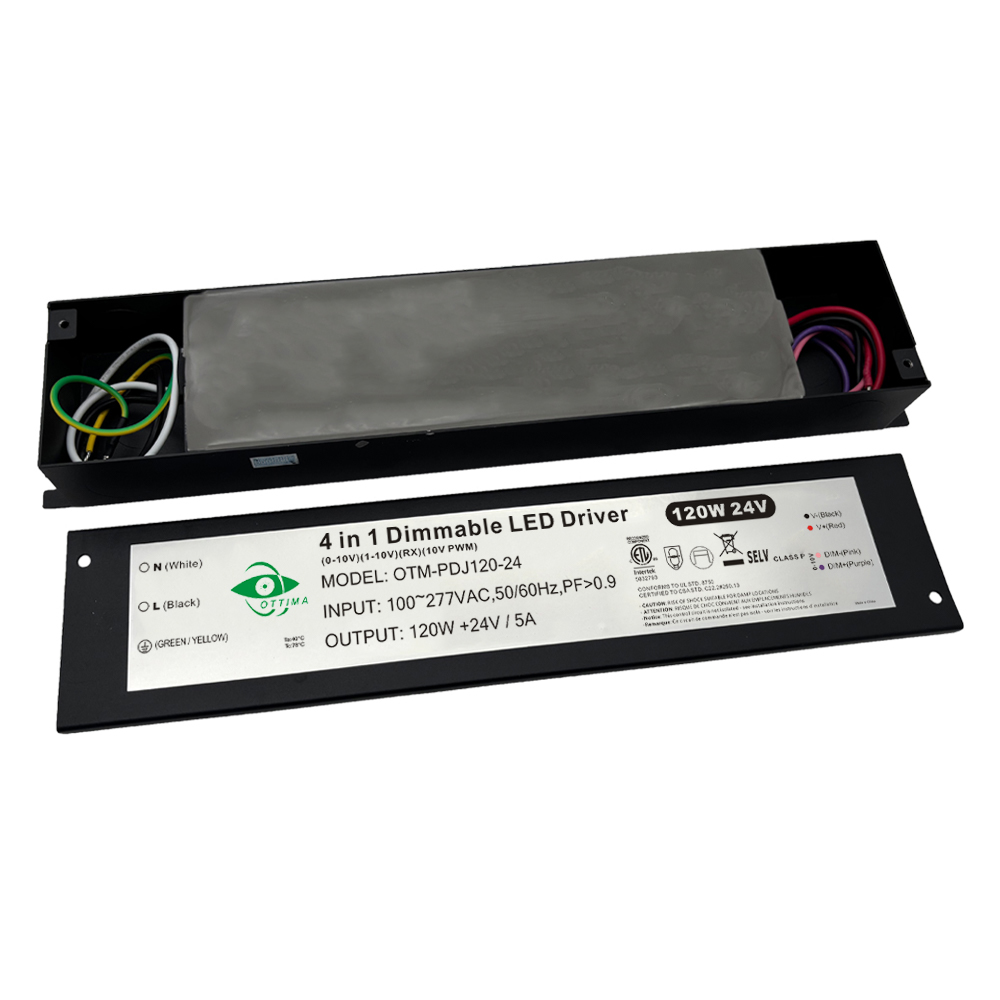

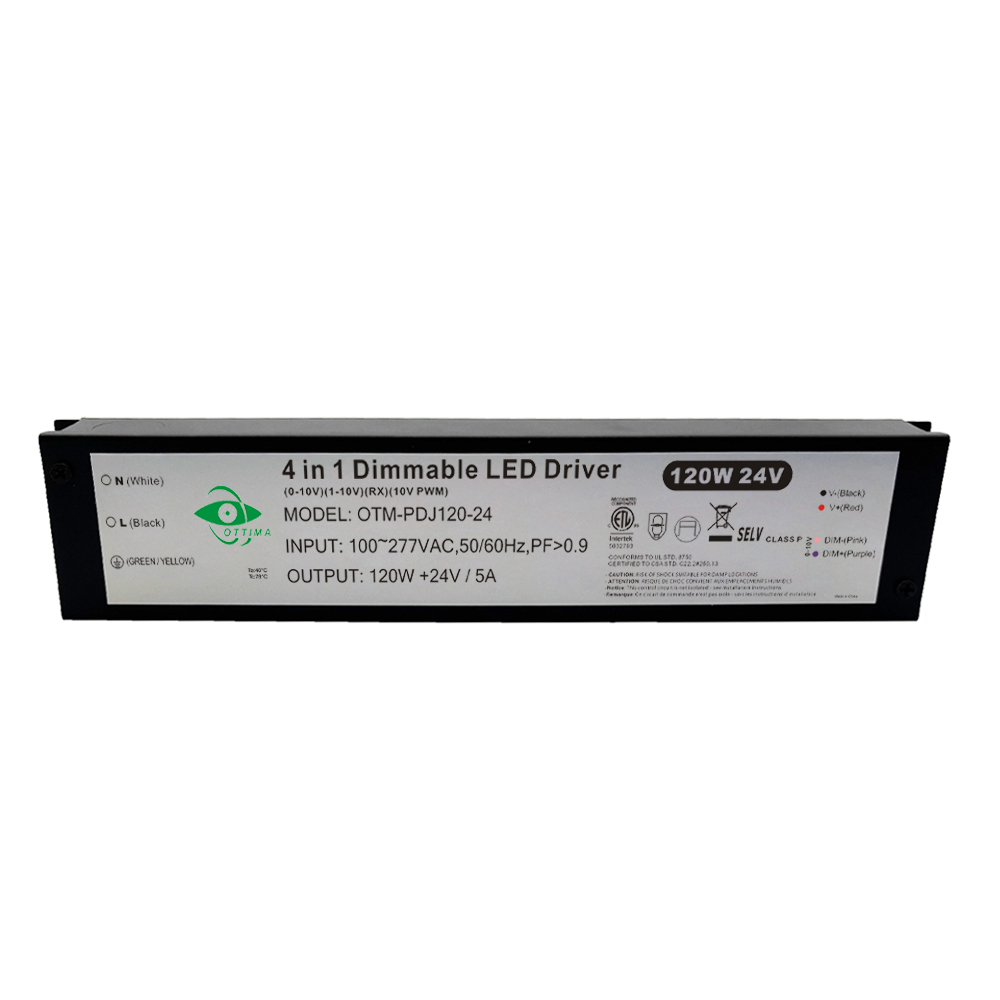

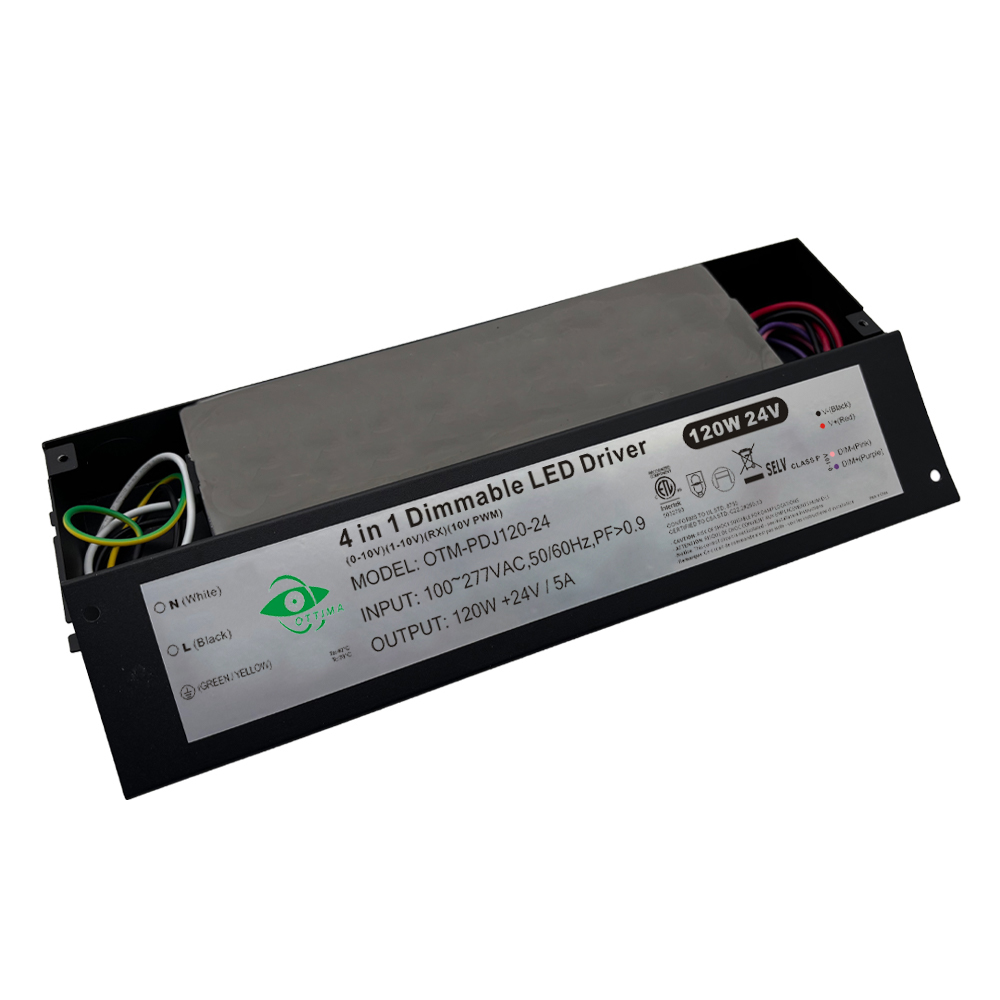

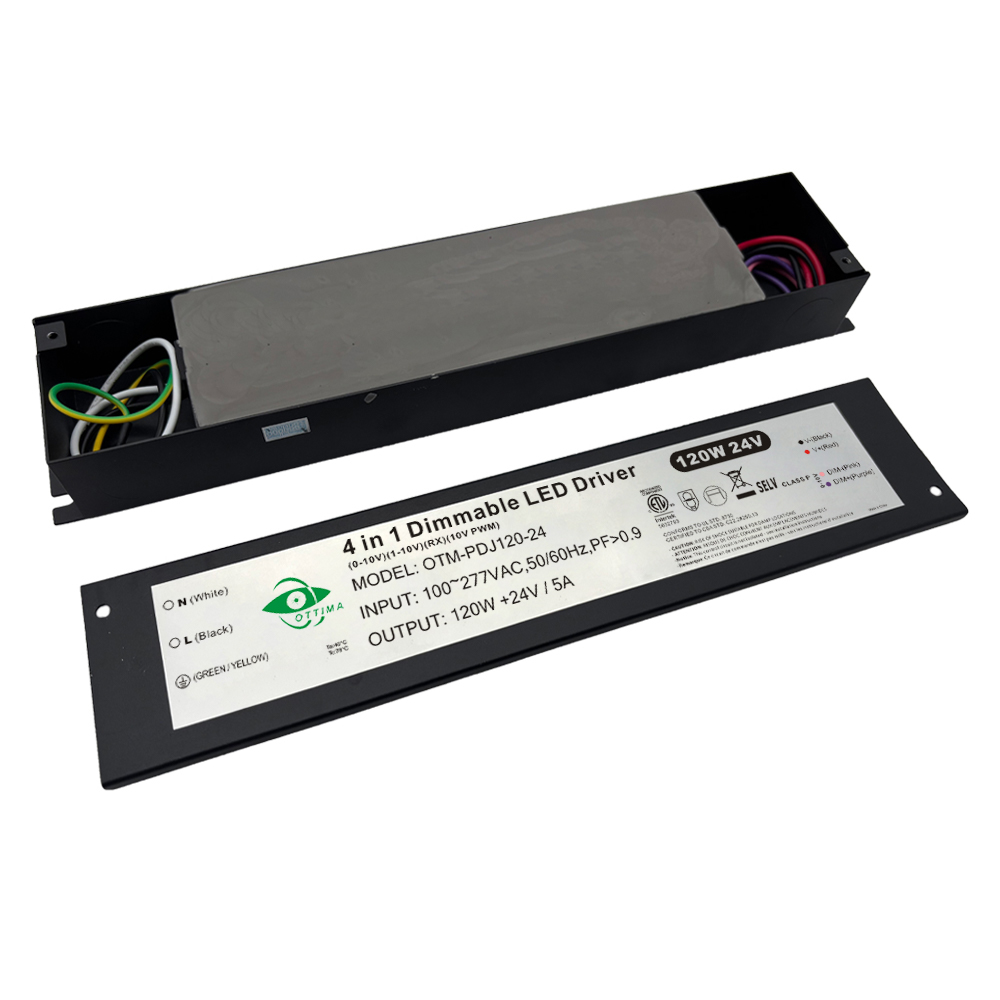

OTM-PDJ120-12-F
OTM-PDJ120-24-F | 120W | 12V 24V | 10A
5A | 1.3 | 220*93*41 | 10PCS/CTN |
OTM-PDJ150-12-F
OTM-PDJ150-24-F | 150W | 12V 24V | 12.5A
6.25A | 1.8 | 260*103*46 | 10PCS/CTN |
OTM-PDJ200-12-F
OTM-PDJ200-24-F
| 200W | 12V 24V | 16.67A
8.3A | 1.8 | 260*103*46 | 10PCS/CTN |
OTM-PDJ300-12-F
OTM-PDJ300-24-F | 300W | 12V 24V | 25A
12.5A | 1.9 | 260*103*46 | 10PCS/CTN |
Specifications
| Protection | Short Circuit | shut down o/p voltage, re-power on to recover after fault condition is removed |
| Over Current | ≤1.2*Iout |
| Over Loading | ≦120% shut down o/p voltage, re-power on to recover |
| Over temperature | 100℃± 10℃ shut down o/p voltage ,re-power on to recover |
| Environment | Working TEMP. | -40～+70℃ |
| Working Humidity | 20～90%RH, non-condensing |
| Storage TEMP. Humidity | -40～+80℃，10～95%R |
| TEMP .cofficient | ±0.03%/℃（0～50℃) |
| Vibration | 10～500Hz，2G 10min./1 cycle,period for 72min. each along X,Y,Z axes |
| Safety& EMC | Safety standards | UL8750+UL1310 Class 2 unit , EN61347-1 EN61347-2-13 |
| Withstand voltage | I/P-O/P:3.75KVAC |
| Isolation resistance | I/P-O/P：100MΩ/500VDC/25℃/70%R |
| EMC EMISSION | EN55015,EN61000-3-2,3 (≧60%loading),FCC Part 15 B |
| Notes | 1. All parameters NOT specially mentioned are measured at 230VAC input , rated load and 25℃ of ambient temperature. 2. To extend the driver's using life ,please reduce the loading at lower input voltage. 3.
The power supply is considered as a component that will be operated in
combination with final Equipment. Since EMC performance will be affected
by the complete installation, the final equipment manufactures must
be-qualify EMC Directive on the complete installation again
4. Loading range from 10% to 100% |

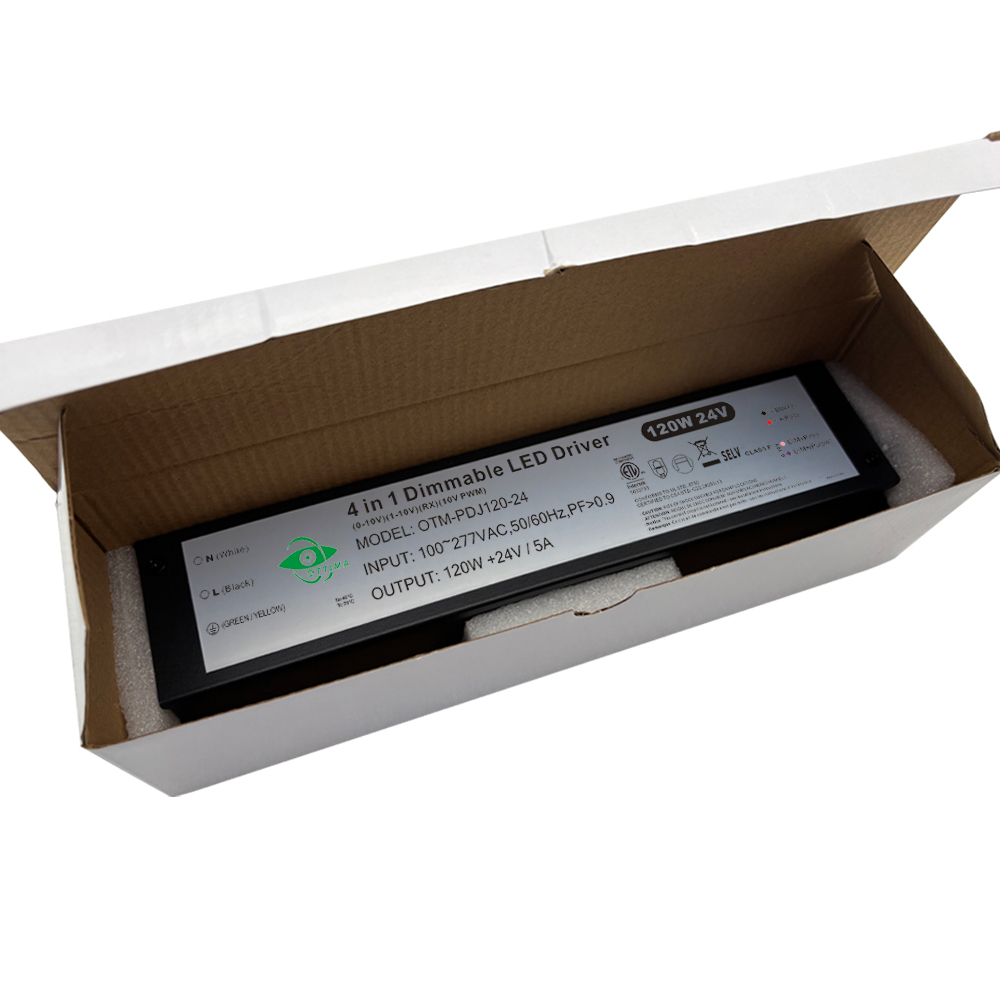

Package
Dimensions
Driver Connecting Diagram
Dimming Operation
※Built-in
3 in 1 dimming function,Output luminous can be adjusted through output
cable b connecting a resistance or 0/1-10Vdc or 10V PWM signal between
DIM+ and DIM-.
※Please DO NOT connect "DIM-"to "LED-"
Warning
※1)This driver should be installed by qualified and professional person;
※2)Please make sure the driver is installed with adequate ventilation around it to allow for heat dissipation.
※3)Ensure that wiring is correct before test in order to avoid light and power supply damage;
※4)If driver Cannot work normally, don’t maintain privately; Have any question, please contact us.
